Furniture Luminaires

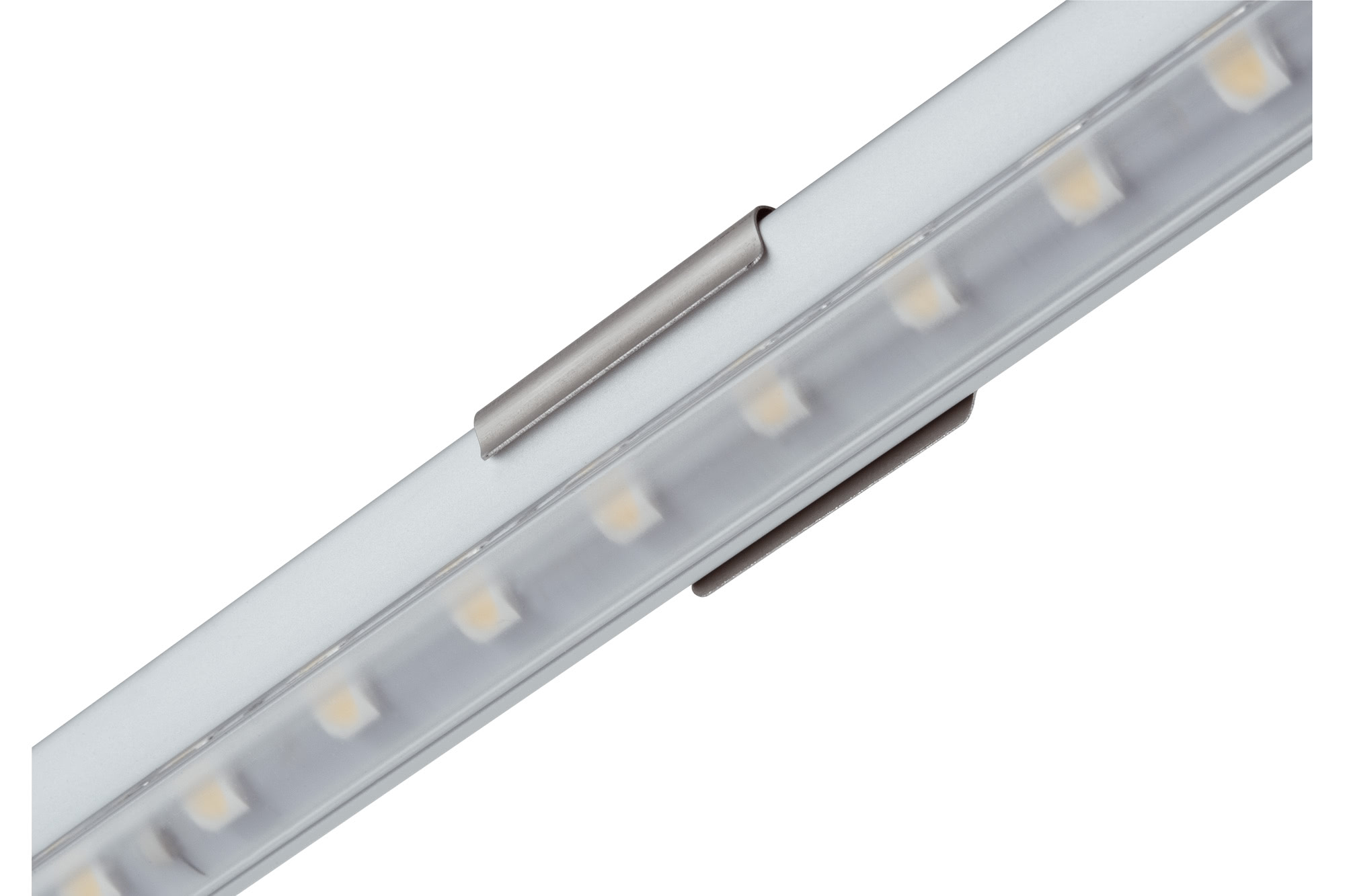

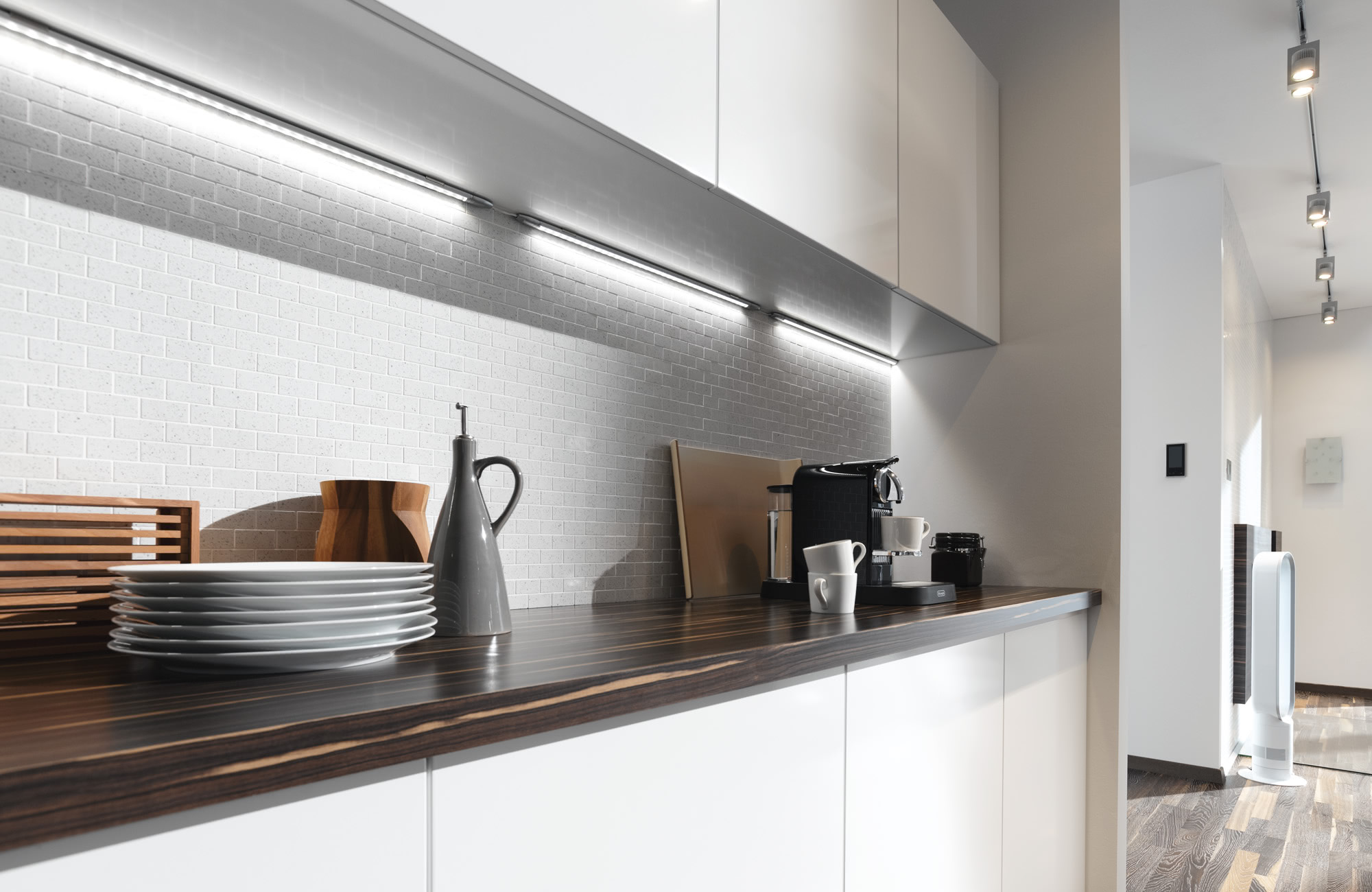

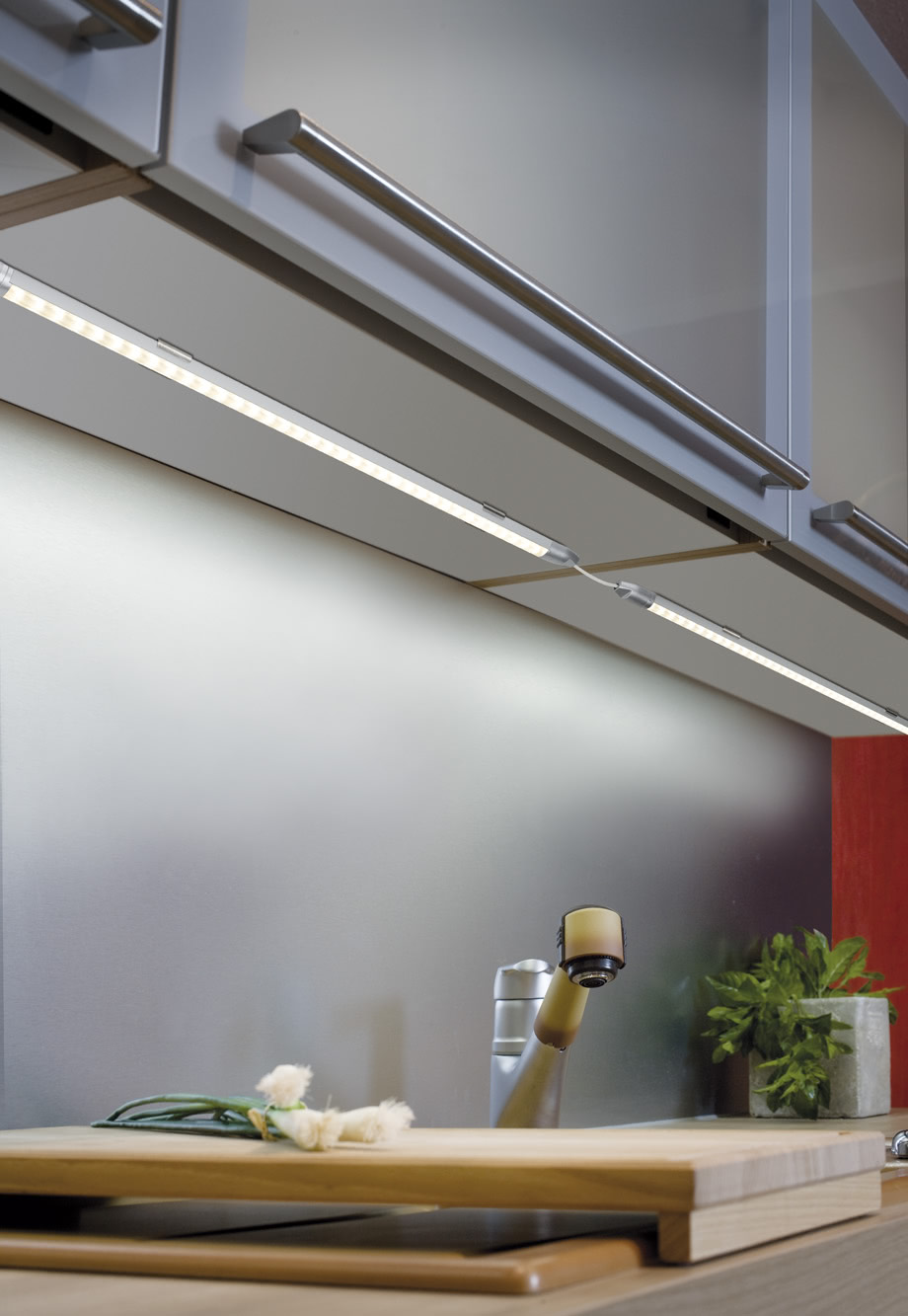

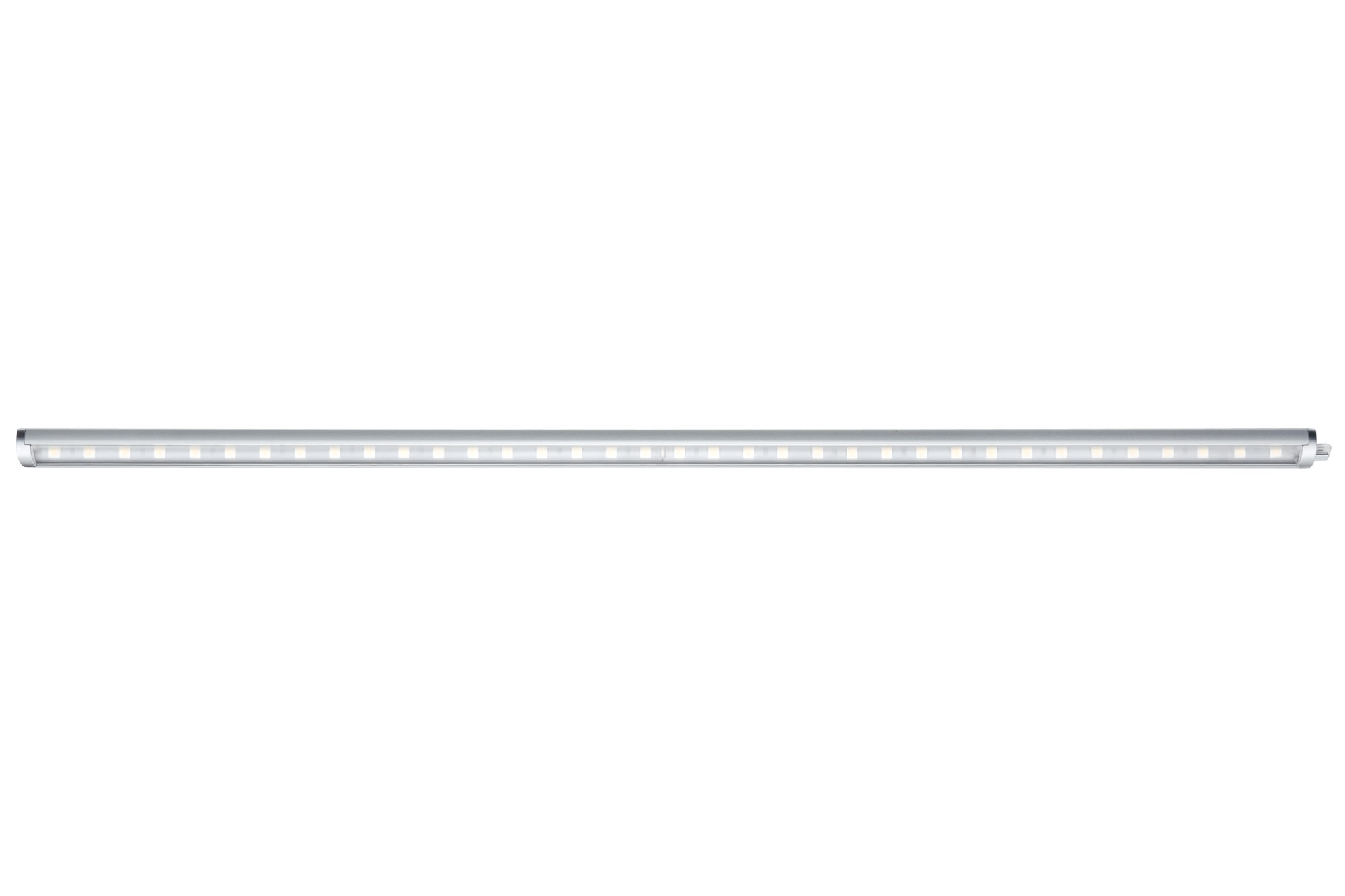

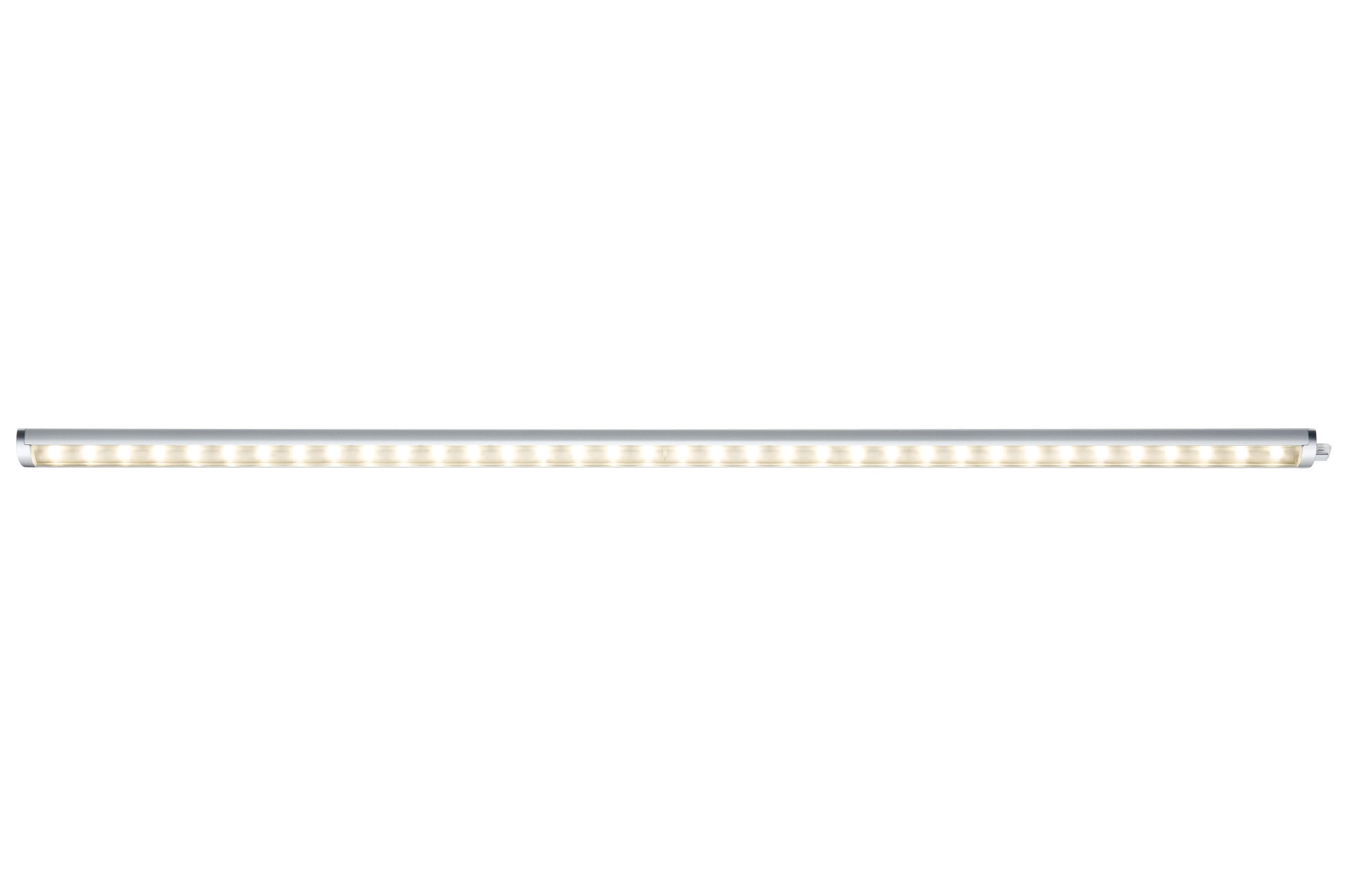

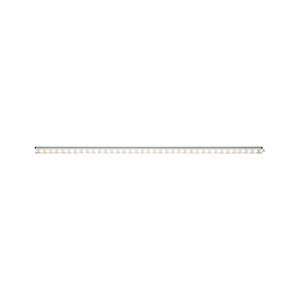

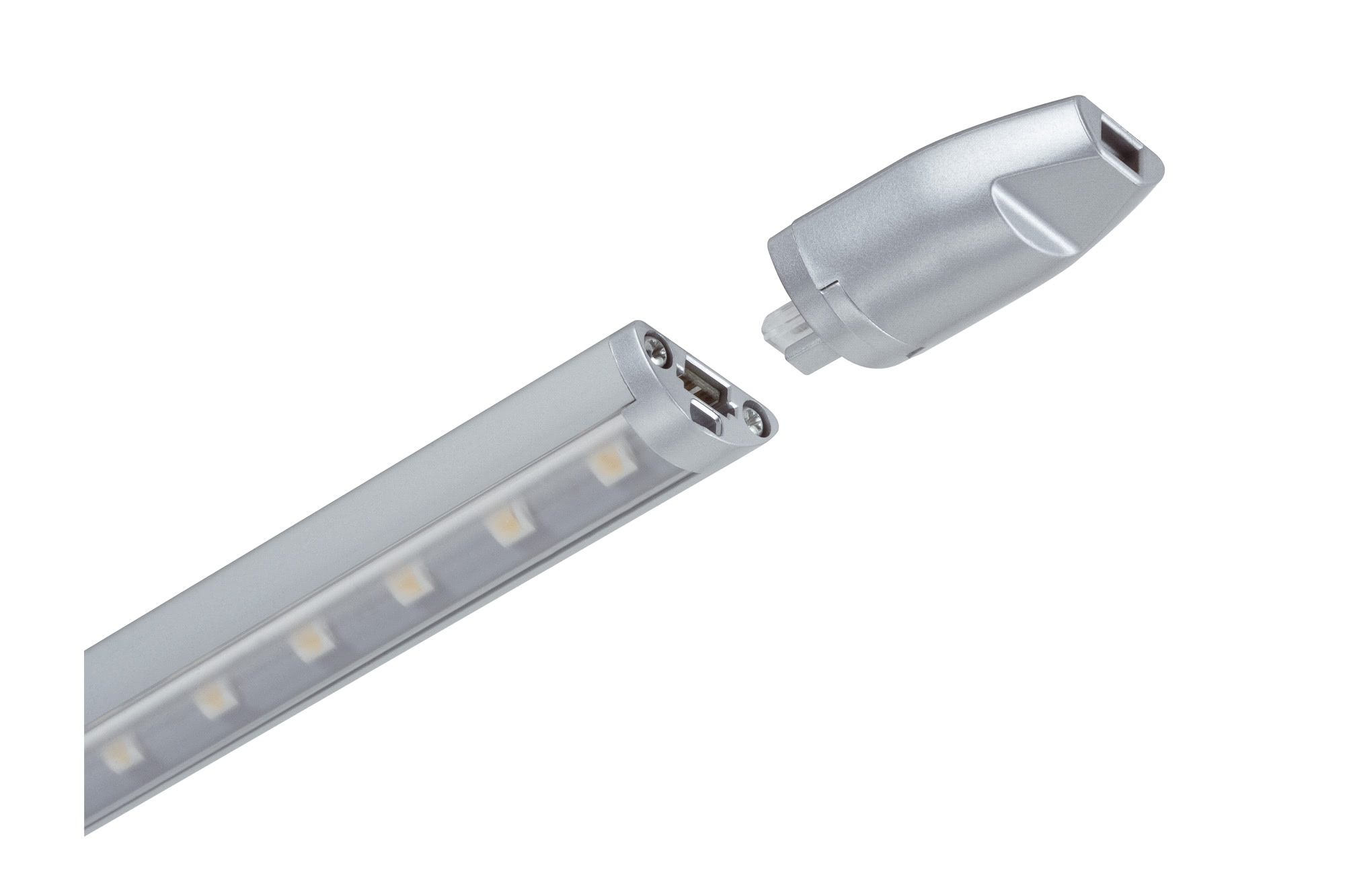

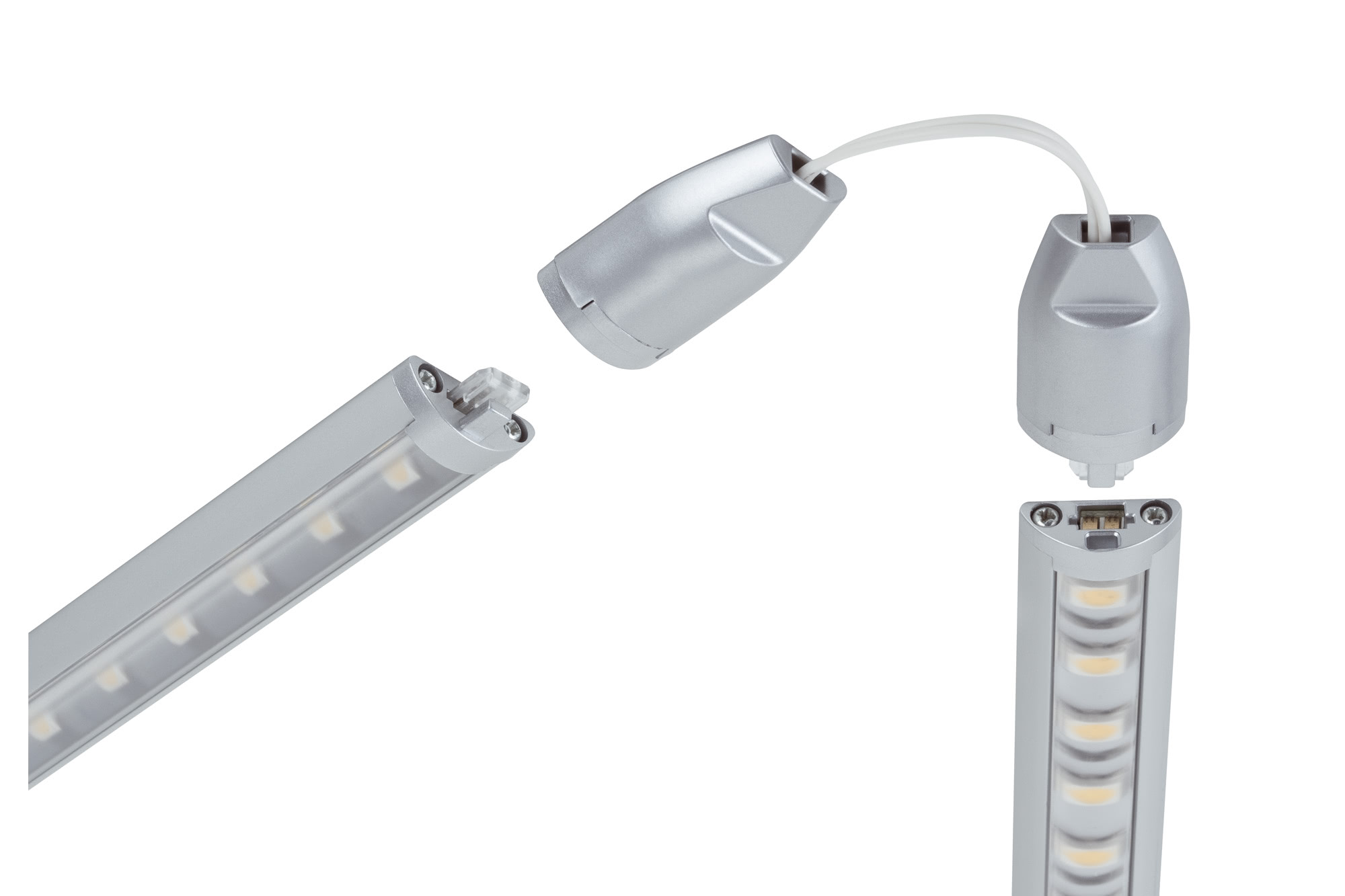

Whether you are using it as a cabinet interior light, an under-cabinet light or for display case illumination: LinkLight provides an efficient and at the same time very strong LED light. Its extremely slimline form using a high-quality aluminium profile with a satined acrylic covering allows it to be used in a wide variety of applications. It can be extended to include 3В additional light bars.

  ARTICLE    70284 ( 702.84 )
  EAN          0
  Beam angle    95 В°
  Cable disconnector    Cable disconnector
  Colour    Aluminium, Satin
  Depth    22 mm
  Dimensions (Height x Width x Depth)    H: 10 x B: 660 x T: 22 mm
  Dimmable    No
  Europlug    Europlug
  Farbtemperatur    3000 K, 3.000 K
  Farbtemperatur_Formel    3.000 K
  Height    10 mm
  Inclusive lamp    Yes
  Installation site    Universal
  Installation site (recommendation)    Universal
  Luminous intensity    260 cd
  MM symbol    MM symbol
  Material    Acrylic, Alu
  Number of component parts    1x
  Operating voltage    230/24 V
  Plug    Europlug (Typ C-CEE 7/16)
  Power consumption    11 W
  Power factor    0,809
  Protection class    Protection class II
  Rated life time    20000 h
  Rated luminous flux (Lumen)    380 lm
  Rated power    7,5 W
  Technique    LED
  Technology    LED
  Trafoleistung    30 VA
  Transformer depth    141 mm
  Transformer height    34 mm
  Transformer power    30 VA
  Transformer width    53 mm
  WEEE-Reg.-No    DE 39236390
  Width    660 mm
  Color    Alu
  Color temp.    3000 K
  Component parts    7,5 W
  Life    20.000 h
  Lifetime    20.000 h

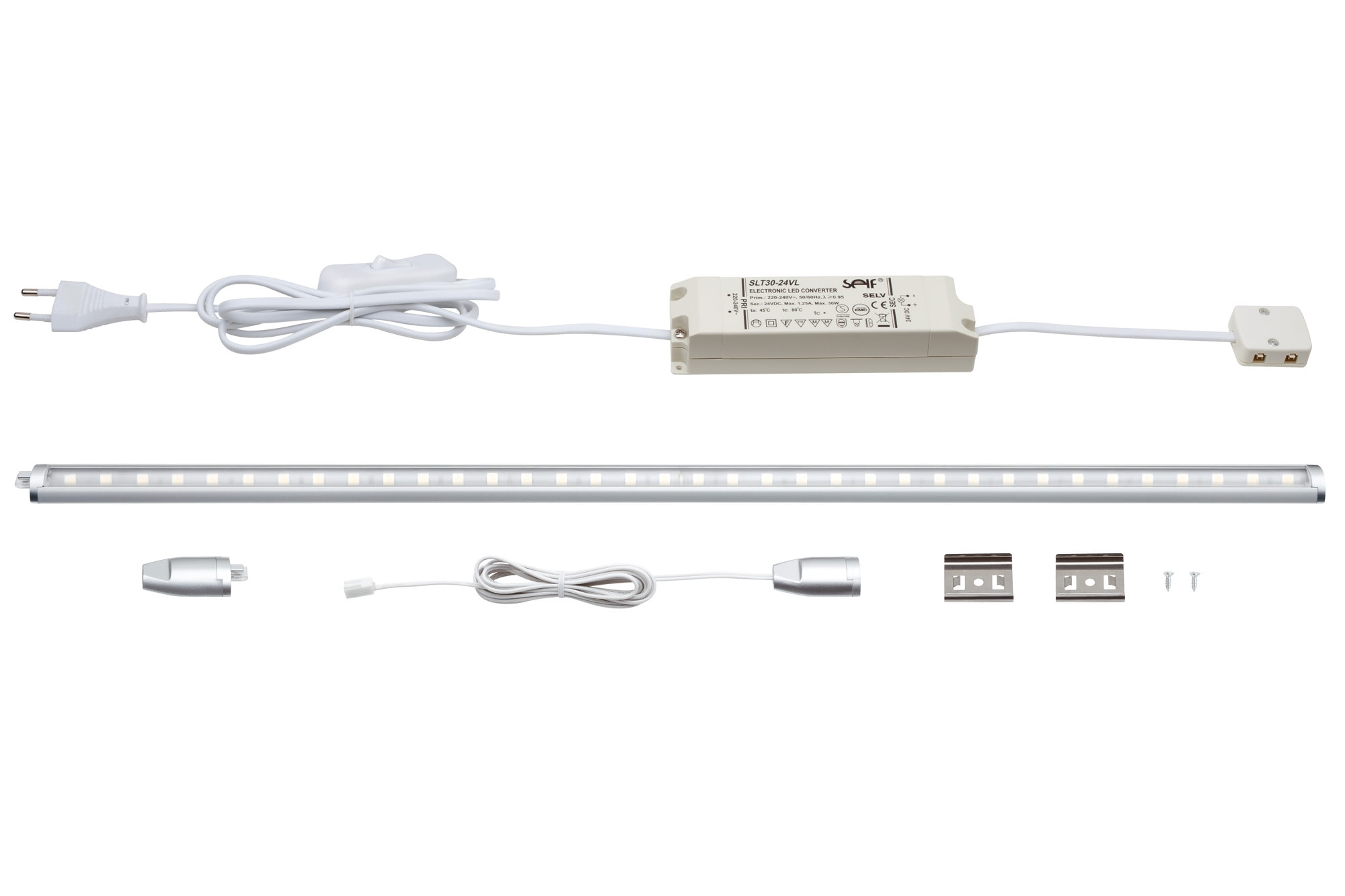

  Marketing type    Set
  Plug-and-socket connector    Plug-and-socket connector
  Rated beam angle    95 В°
  Starting time <    0,0 s
  Switch    With cable disconnector
  Useful luminous flux    380 lm
  Watt    7,5 W
